DVB-T/DTMB Antennas HOME >> Product >> DVB-T/DTMB Antennas

Shenzhen SD Communication Equipment Co., Ltd-DTMB Active signal Amplification antenna

DVB-T/DTMB Antennas

DTMB Active signal Amplification antenna

ShenZhen Shengda Communication Equipment Co., Ltd. specializes in microwave, mobile, satellite communications antennas and related communications products R & D, production and sales of high-tech enterprises, is the early development and production of communication antennas, one of the professional manufacturers. The company has advanced antenna testing instruments and automatic antenna far-field testing system, a variety of products won the domestic new products and quality Products Award, Science and Technology Progress Award.

 DTMB Active signal Amplification antenna  Product Details


Active HD VHF/UHF TV Antenna DVB-T T2 Portable Indoor Aerial Magnetic Mount


Antenn Model:SD-ISDB-T-105

* Product type: 174-230/470-862(MHz) mhz DVB-T magnetic Antenna

* Place of origin:China

* Price of term: EXW, FOB,CIF

* Payment term:T/T L/C

* MOQ:1000pcs

* Brand Name: ShengDa


Features:


* Enjoy top-rated HDTV program for free

* easy installation .

* Support up to 1080P HD picture far from 50mile range.

* With stands tough outdoor conditions with durable construction

* active antenna with amplifier to guarantee the high gain,

* RG174 / RG58 3m 5m cable optional, more flexible choice.

* performance& reception much better than normal antenna.

* Designed and enginered in China


Specification:


Frequency range

Frequency Range

VHF174-230/UHF470-860MHz

gain

Gain

≥28dB

Polarization mode

Polarization

Vertical polarization

Voltage standing wave ratio

VSWR

2 or less

Joint form

Connector

IEC

Noise factor

Noise Factor

≤1.5dB

The power supply voltage

Power

DC5V

current

Power consumption

≤15mA

Output impedance

Out impedence

75W

Fixed form

Fixed Method

Chuck (Glue to stick)

Interface form

Input Connector

IEC\F

Mechanical properties

MechanicalSpecifications

The antenna body size

Dimensions of Antenna

62*105mm

The length of the cable

Cable length

1.5mOptional)

The weight of the

Weight

145g

Working temperature

Working Temperature

- 40 ~ + 85

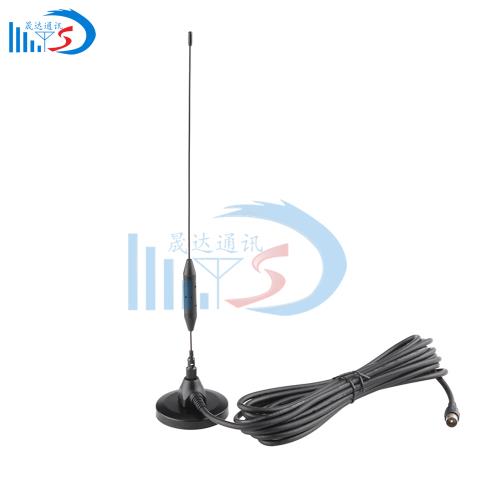

very unique appearance,nickle plating manetic base and antenna mast.





28dbi high gain with amplifer , IEC / F male two connector optional

 RG174 cable, 3m 5m optional, more flexible choice







Our Services


1. Superior Quality

Our QC ensures do everything they can for quality checking .
We inspect all incoming material before they are put on the production line and warehouse, so all our customer no need worry about the quality problem.


2. Faster Response/Delivery
Customer service available on working time (8 : 30 – 17 : 30) from Monday to Saturday. Well-trained staff will arrange Orders/Sample by courier, such as DHL, UPS and FedEx, TT average of 7 days, 2~4 weeks finish sea shipment, shipments are insured for successful delivery and trackable online.


3. Professional, Value for money
We are directly manufacturer, OEM&ODM , any customized antenna we can design and make it to product. Better price than trading company.


Quality is essential for both of us, we believe that High quality, Low price,Mutual benefit will be  the basic of our cooperation.


Please Contact us if you have any questions or other requirements!
