DVB-T/DTMB Antennas HOME >> Product >> DVB-T/DTMB Antennas

Shenzhen SD Communication Equipment Co., Ltd-DVB-T Mouse Tail suction cup antenna DTMB antenna

DVB-T/DTMB Antennas

DVB-T Mouse Tail suction cup antenna DTMB antenna

ShenZhen Shengda Communication Equipment Co., Ltd. specializes in microwave, mobile, satellite communications antennas and related communications products R & D, production and sales of high-tech enterprises, is the early development and production of communication antennas, one of the professional manufacturers. The company has advanced antenna testing instruments and automatic antenna far-field testing system, a variety of products won the domestic new products and quality Products Award, Science and Technology Progress Award.

 DVB-T Mouse Tail suction cup antenna DTMB antenna  Product Details



 Specification:

Performance indicators

Electrical Specifications

Frequency range

Frequency Range

VHF174-230/UHF470-60MHz


gain

Gain

≥5dB


Polarization mode

Polarization

Vertical polarization


Voltage standing wave ratio

VSWR

2 or less


Joint form

Connector

IEC


Output impedance

Out impedence

75W


Fixed form

Fixed Method

Chuck (Glue to stick)


Interface form

Input Connector

FBritish male head


Mechanical properties

MechanicalSpecifications


The antenna body size

Dimensions of Antenna

62*175mm


The length of the cable

Cable length

5mOptional)


The weight of the

Weight

140g


Working temperature

Working Temperature

- 40 ~ + 85


Feature:


  • High gain VHF UHF DVB-T antenna with magnetic base

  • Strong signal reception

  • Superior Performance: High picture quality, transmission security

  • Easy to install, just simply plug it to DVB-T/ DVB-T2 stick

  • Call out all “Free” channels

  • For Indoor use, high quality control, simple operation

  • Exquisite appearance.

  • F male/IEC connector optional

  • RG58 RG174 3m 5m optional

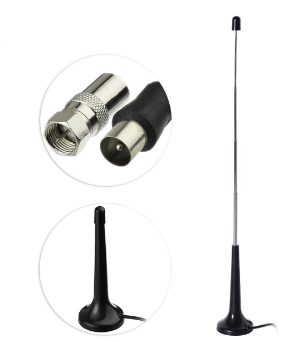

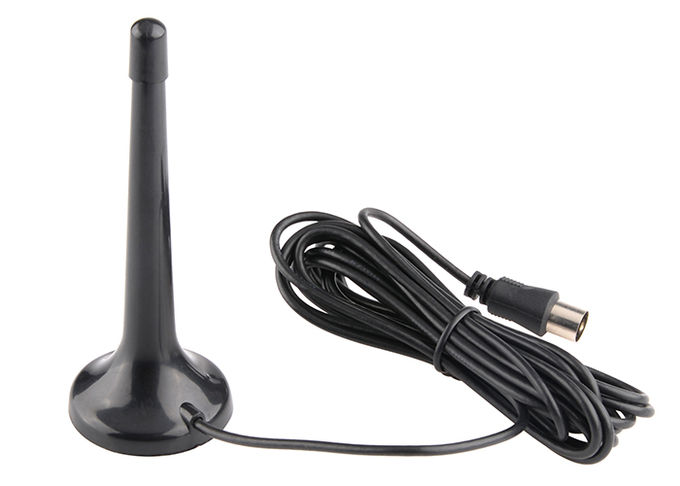

Exquisite Appearance With Rat Tail, High Gain



IEC / F male two connector optional



VHF/UHF, easy to  installation

Indoor DVB-T DVB-T2 Digital TV Antenna with F Male or IEC Connector
