DVB-T/DTMB Antennas HOME >> Product >> DVB-T/DTMB Antennas

Shenzhen SD Communication Equipment Co., Ltd-Active digital TV Yagi antenna with 12 meter rough Line + 0.5 m active power supply cable

DVB-T/DTMB Antennas

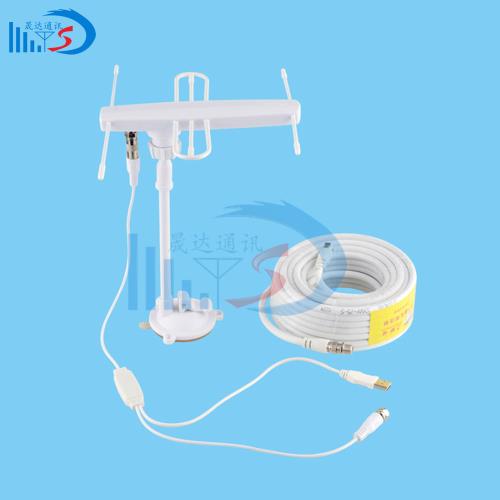

Active digital TV Yagi antenna with 12 meter rough Line + 0.5 m active power supply cable

ShenZhen Shengda Communication Equipment Co., Ltd. specializes in microwave, mobile, satellite communications antennas and related communications products R & D, production and sales of high-tech enterprises, is the early development and production of communication antennas, one of the professional manufacturers. The company has advanced antenna testing instruments and automatic antenna far-field testing system, a variety of products won the domestic new products and quality Products Award, Science and Technology Progress Award.

 Active digital TV Yagi antenna with 12 meter rough Line + 0.5 m active power supply cable  Product Details

Shenzhen Shengda Communication Equipment Co., Ltd. specializes in microwave, mobile, satellite communications antennas and related communications products R & amp; d, production and sales of high-tech enterprises, is the early development and production of communication antennas, one of the professional manufacturers. The company has advanced antenna testing instruments and automatic antenna far-field testing system, a variety of products won the domestic new products and quality Products Award, Science and Technology Progress Award. The company passed ISO9001 Quality system certification and ISO14001 environmental system certification, leading products digital TV antennas, film antennas, set-top box antennas, sucker antennas, base station FRP antennas, Beidou GPS antennas, wire antennas, the frequency of the company's products from 315mhz-6ghz,


And according to user requirements for the development of a variety of microwave antennas. Company's products are exported to the United States, Europe, South Africa, South Korea, the Middle East and Southeast Asian countries. The company has a strong design team, product quality to improve year by year, the production process is constantly updated to make the product more perfect. We will update the higher quality, more perfect design, to the highest quality, the lowest price, the fastest delivery in good faith service with customers at home and abroad. We will, as always, follow the "Quality first, customer first" business philosophy, to strict management, high-quality products, quality goose services, and you join hands in creating brilliant!



Performance indicatorsElectrical Specifications

Frequency rangeFrequency Range

174-230/470-862(MHz)

The input impedanceInput Impendence

75 (Ω)

Half power pointHalf-power angle

H 60Plus or minus5°/ E 66Plus or minus5°

Voltage standing wave ratioV.S.W.R

2.0 or less (665).

gain

28(dBi)

Maximum input powerMax Input Power

50 (W)

The Noise coefficient of Noise Factor

≤1.5dB

The Power supply voltage

DC5V

Current Power consumption

≤30mA

Than before and after Front to Back Ratio

≥ 15 dB

Polarization form Polarization Type

Vertical or Horizontal

The connector typeConnect Type

FMother's head

Lightning protection Lightning Protection

The DC grounding DC Ground

Mechanical index Mechanical Specifications

Working temperatureWorking Temperature

- 40℃ ~ + 60 ℃

The weight of the Weight

0.3 (kg)

The antenna size Size

270*195*50 (mm)

Radiating element Radiating element

3
