2.4 GHz WiFi / WLAN Antennas HOME >> Product >> 2.4 GHz WiFi / WLAN Antennas
5dBi 2.4G Outdoor Omni Directional Wifi Long Rang External SMA Male Antenna
Product type: GSM antenna
Place of origin:China
Price of term: EXW, FOB,CIF
MOQ:1000pcs
Payment term:T/T L/C, Paypal
Brand Name: ShengDa
They apply to common applications
High gain: 10dBi
Low Profile 3 mile Tall
Omni-directional and simply replace current antenna to increase signal strength.
Excellent reception and easily installed.
Fully weatherproof and waterproof
SMA male Connector on Coax Lead / Vandal Resistant Materials & Design
Nice and sturdy.
Strong immunity to interference, extend wireless range to dead spot.
Good performance as well as a relatively other antenna
Antenna length: 80mm
Electrical Specification | |
| Frequency range | 2400-2500MHZ |
| Gain | ≥5dbi |
| Power | 5V |
| Max Input power | 50w |
| Impendence | 50Ω |
| VSWR | ≤ 1.5 |
| Power consumption | ≤30mA |
| Lightning protection | DC ground |
| Polarization | Vertical |
Mechanical specification | |
| Cable length | 1.5meter / 3meter |
| Cable type | 1.5m RG174 |
| Color | Black |
| Weight | 94.4g |

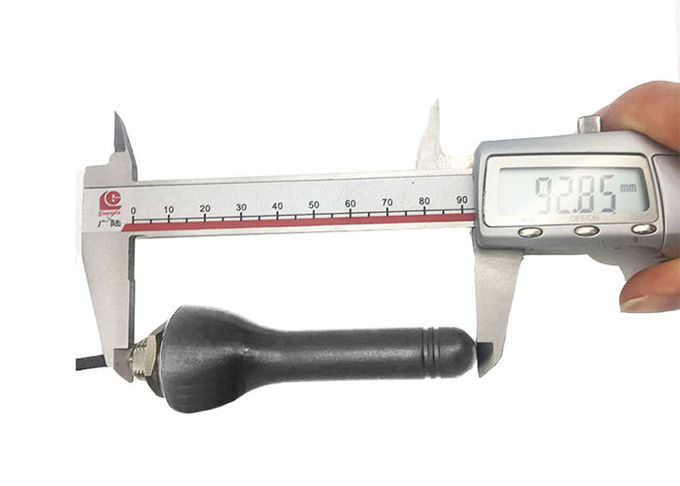

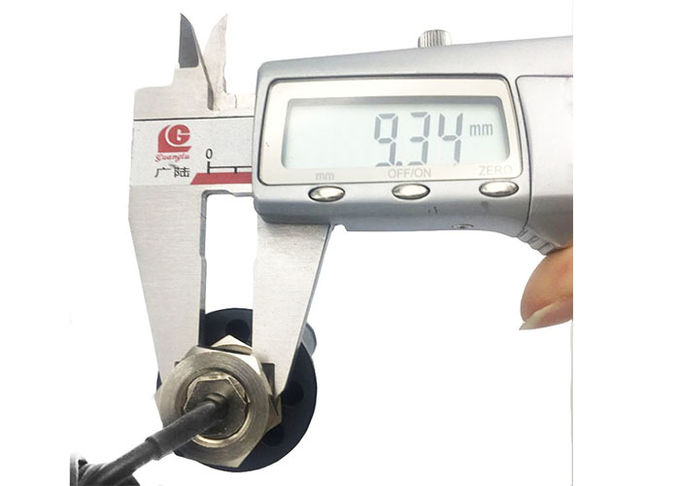

| Antenna Dimention | 9*93mm |
| Connector | SMA-J optional |
| Operating humidity | 20-95% |
| Capacity | 3000pc / day |
| Operating temperature | -40℃~﹢65℃ |
Our Services
1. Superior Quality
Our QC ensures do everything they can for quality checking .
We inspect all incoming material before they are put on the production line and warehouse, so all our customer no need worry about the quality problem.
2. Faster Response/Delivery
Customer service available on working time (8 : 30 – 17 : 30) from Monday to Saturday. Well-trained staff will arrange Orders/Sample by courier, such as DHL, UPS and FedEx, TT average of 7 days, 2~4 weeks finish sea shipment, shipments are insured for successful delivery and trackable online.
3. Professional, Value for money
We are directly manufacturer, OEM&ODM , any customized antenna we can design and make it to product. Better price than trading company.
Delivery time: 7 working days on receipt of sample payment
15 working days on receipt of order payment proof
Quality is essential for both of us, we believe that High quality, Low price,Mutual benefit will be the basic of our cooperation.
Please Contact us if you have any questions or other requirements!
